HYL-8 removing the mildew seed grain cleaning equipment

Product Description

HYL-8 removing the mildew seed grain cleaning equipment is mainly used for sieving and cleaning for corn, wheat, barley, sesame,sunflower seeds,etc. It can The screen mesh can be replaced as per different grain size. The cleaning rate could be 98%. It is the ideal machine for feeding farm which can separate the broken piece from the good seeds and also can separate the mildew corn.

Working Principle

There are three screen decks of HYL-8 removing the mildew seed grain cleaning equipment. At first,the front screen will sort out the dust and samilar impurities. Then the main air blower will suck it out at last part. First screen deck is for the big impurities, second decks for cleaning grain, third decks is for broken grain and sand etc.
As per different sorting needs, there are two types of machine which one is only for cleaning and sieving. It can be discharged from outlet directly after sieving.

And another one is cleaning sieving machine with winnowing device. After the grains finished cleaning, it will be casted out by Grain winnowing device to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain winnower"

Main Application

This new type HYL-8 removing the mildew seed grain cleaning equipment is also suitable for grains, maize corns, wheat, sorghums, millets, rapeseeds, sunflower seeds,beans and so on. It is widely applied in the livestock breeding, small farm, small feed producing company, grain and cooking oil processing factory,wind plant,chemical plant and

pharmaceutical factory etc.

Machine Features

1. With wheels , it is very easy to move .
2. With hand crank , you can use it for manual or electric
3. The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.
4. Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or winnowing needs.

Technical Data

Flexible Screw Conveyor for Truck Loading (Click the picture for video instruction)

25-50kg semi rational filling weighing bagging machine (Click the picture for video instruction)

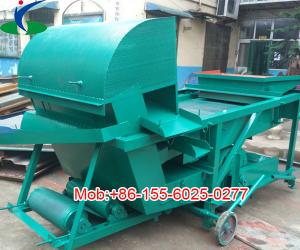

HYL-8 removing the mildew seed grain cleaning equipment Images
